| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SECUERA or OEM |
| Certification: | CE.FCC.ROHS,ISO9999 |
| Model Number: | SE-A02 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiation |
| Packaging Details: | International Standard Packing |
| Delivery Time: | 3 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2000 SET/Month |
| Product Name: | Rfid Door Access Control System | Camera: | 2.0MP 1920*1080 |
|---|---|---|---|
| Function: | Automatic Face Recognition System | Communication: | USB Host |
| Warranty: | 1 Year | Screen: | 7/8-inch IPS HD Display |
| Sensor: | 1/2.7" CMOS | System: | Linux/WINS |
| High Light: | walk through body temperature scanner,temperature measuring door |
||

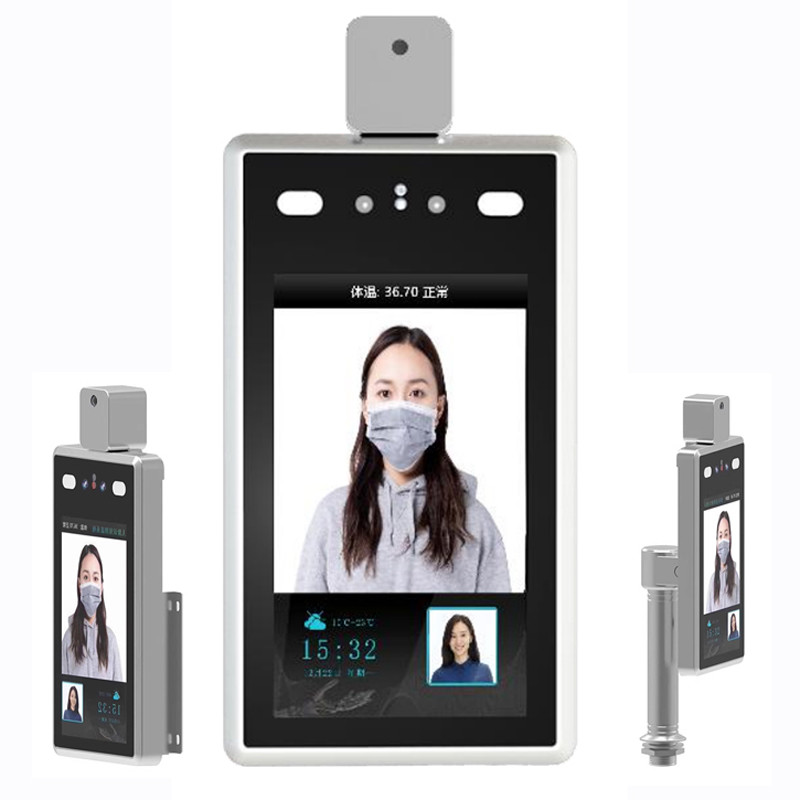

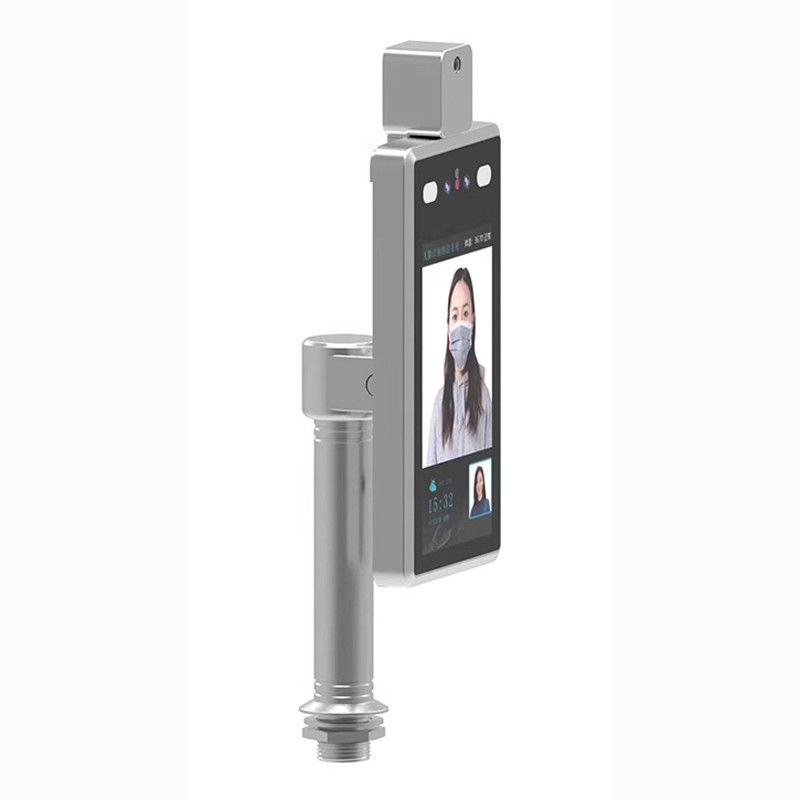

AI 7 inches facial recognition and temperature measure gate access control system
Product Descroption:
*AI Dynamic Face Recognition / Facial Recognition Body Temperature Detection / In & Out Intelligent Solution Non-Touch
*Fast In and out
*Abnormal alert
*Face recognition
*Access control
*Infrared thermal imaging fast temperature measurement error as low as + -0.3 degrees
*Binocular biopsy
*Abnormal temperature control
*Real-time voice broadcast
*Speed of recognition <300MS
*Recording speed <500MS
*Distance: 0.3-0.5m for 7inch; 0.3-08 for 8inch.
*Record information in real time
*7/8 Inch IPS HD IP34
|
Hardware
|
|
|
Chipset
|
Hi3516DV300
|
|
System
|
Linux operation system
|
|
RAM
|
16G EMMC
|
|
Image sensor
|
1/2.7" CMOS
|
|
Lens
|
4mm
|
|
Camera Parameters
|
|
|
Camera
|
Binocular camera supports live detection
|
|
Effective pixel
|
2Mega pixel,1920*1080
|
|
Min. lux
|
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
|
|
SNR
|
≥50db(AGC OFF)
|
|
WDR
|
≥80db
|
|
Face Recognition
|
|
|
Height
|
1.2-2.2 M, angle adjustable
|
|
Distance
|
0.5-3 Meters
|
|
View angle
|
Vertical ±30 degree
|
|
Reco. Time
|
<500ms
|
|
Temperature
|
|
|
Range
|
30-45(℃)
|
|
Accuracy
|
±0.3(℃)
|
|
Distance
|
0.3-0.8m
|
|
Response time
|
<300ms
|
|
Interface
|
|
|
Internet interface
|
RJ45 10M/100M Ethernet
|
|
Weigand port
|
Support input/output 26 and 34
|
|
Alarm output
|
1channel relay output
|
|
USB port
|
1USB port (Can be connected to ID identifier)
|
|
General
|
|
|
Power input
|
DC 12V/2A or 3A
|
|
Power consumption
|
20W(MAX)
|
|
Working temperature
|
10℃ ~ +50℃
|
|
Humidity
|
5~90%, no condense
|
|
Dimension
|
123.5(W) * 84(H) *361.3(L)mm
|
|
Weight
|
2.1 kg
|
|
Column aperture
|
33mm
|
Precautions:
- The temperature measuring device should be used in a room with a room
temperature between 10 ℃ -40 ℃. Do not install the temperature measuring
device under the vent, and ensure that there is no heating source within 3
meters;
- Personnel entering the room from a cold outdoor environment will affect the
temperature measurement accuracy. The forehead temperature test should be
performed after the forehead is unobstructed for three minutes and the
temperature is stable;
- The temperature read by the temperature measuring device is the
temperature in the forehead area. When there is water, sweat, oil or thick
makeup on the forehead or the elderly have more wrinkles, the read
temperature will be lower than the actual temperature. Make sure there is no
hair or clothing covering this area.
